Orange Solar Systems Ltd. is proud to showcase a recent successful solar PV installation at a residential property in Eastleigh, demonstrating our commitment to providing efficient, cost-effective, and environmentally friendly energy solutions. This project highlights how homeowners can significantly reduce their energy bills and carbon footprint with a tailor made solar system.
Embracing Green Energy
The homeowner in Eastleigh, John, sought a reliable and sustainable way to reduce his household’s reliance on grid electricity, lower energy costs, and contribute positively to the environment. He needed a solution that would maximise energy independence and provide long-term financial benefits.
A Bespoke 7.28 kW Solar PV System
Orange Solar Systems Ltd. designed and installed a comprehensive 7.28 kW solar PV system tailored to the specific needs of the property. The system components were carefully selected for their efficiency and performance:
- Solar Panels: 16 high-efficiency Aiko Neostar 2S 455W All Black ABC N-Type Mono solar panels were installed. These panels, measuring 1134 x 1757mm each, boast a 22.8% efficiency, ensuring maximum sunlight conversion into DC electricity.

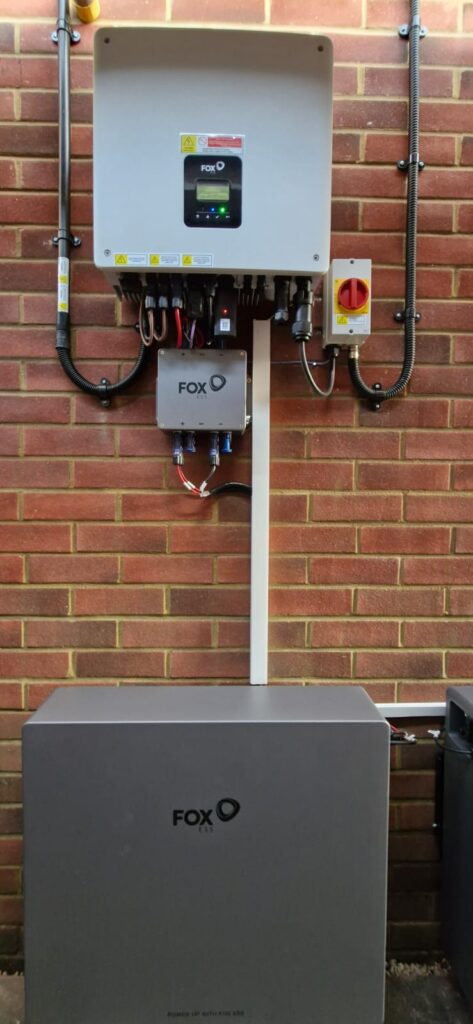

- Inverter: A Fox ESS H1 G2 5.0kW 1ph Hybrid Inverter was integrated to convert the DC electricity from the panels into usable AC electricity for the home. This inverter features 2 trackers for optimised energy harvesting.
- Battery Storage: To enhance energy independence, a Fox ESS EP11 10.36kWh Li-ion Battery storage system (comprising 2 units) was included. This allows excess solar energy generated during sunny periods to be stored and utilised during the night or on cloudy days, significantly reducing grid reliance.
- Mounting System: A robust Renusol pitched roof mounting system, designed specifically for concrete tile roofs, ensured a secure and durable installation.
The installation included all necessary isolators, wiring, and meters, ensuring a safe and fully certified connection to the property’s electrical system by our trained installation team.
Clean Energy Generation
The installed system is projected to generate an impressive 5,984 kWh of clean electricity annually. This estimate considers critical factors such as the system’s location in Zone 3, an orientation of 88° from South, and an inclination (pitch) of 30°. Our detailed meteorological models and sunpath diagrams account for sunlight intensity, panel orientation, and potential shading to provide an accurate performance forecast.
Significant Savings and Returns
The solar system brings many financial advantages to the owners. It is expected to provide 3,819 kWh of the property’s 6,100 kWh annual electricity consumption, leading to a 63% reduction in grid dependence. At an assumed electricity tariff of £0.25/kWh, the system is estimated to save £955 on the electricity bill in the first year, reducing the annual cost from £1,525 to just £570. Furthermore, with 1,942 kWh of excess solar energy expected to be exported back to the grid, and an assumed payment of £0.15/kWh, the homeowner is projected to receive an additional £291 annually. This means the combined savings and income are estimated to be around £1,246 in the first year. The system has an expected payback period of 9 years, and over its projected 25-year lifespan, it is expected to have a Net Present Value of £12,885, making it a strong long-term financial investment.
A Greener Footprint
The installation at 200 Fair Oak Rd significantly reduces the property’s environmental impact. It is expected to save 1,239 kg of CO2 emissions annually. This is achieved by supplying 63% of the property’s electricity from solar and exporting low-carbon electricity back to the grid.
This annual CO2 reduction is equivalent to:
- Driving a car for 4,425 miles.
- The CO2 absorbed by 57 trees in a year.
This demonstrates the homeowner’s significant contribution to a cleaner, more sustainable future by reducing reliance on fossil fuels.
Sustainable Living
The solar PV system installed by Orange Solar Systems Ltd. in Eastleigh, is a perfect example of how homeowners can use renewable energy for both financial gain and environmental benefits. Our expertise in design, installation, and ongoing support ensures that our clients receive a high-performing, reliable, and beneficial solar solution. This project underscores the clear advantages of investing in solar technology and battery storage for a brighter, greener future.
